Woven Crimped AISI304 316 Stainless Steel Filter Wire Mesh For Extruder Screens Rocked Your Industrial Business
The Stainless Steel Filter Wire Mesh is so popularly used in all industries, and that used for filtration or separation is also called Stainless Steel Filter Mesh.
Woven Crimped AISI304 316 Stainless Steel Filter Wire Mesh is crimped before weaving, and it has solid structure, good loading capacity and beautiful appearance.
Woven crimped stainless steel filter wire mesh is widely used for vibrating screen, quarry screen, filter, infill panel, barbecue grill, and shows its ability in chemical, petroleum, mining industries, livestock breeding, etc.
Specifications of Woven crimped stainless steel filter wire mesh :
Materials: stainless steel 301, 302, 304, 304L, 316, 316L, 321.
Mesh width: up to 2000 mm.
Aperture width: 10-120 mm in the case of multi-notch meshes and 4-40 mm in the case of single-notch meshes.
Weaving method: crimped before weaving.
Surface treatment: pickling and passivation, polishing, galvanized.
Frame:
Cut the edges;
Bent edges;
Sheathed hooks.
Packing:
Sheets on pallets or in wooden cases;
Rolls wrapped with waterproof paper and plastic film.
Specifications of Woven crimped stainless steel filter wire mesh:
Wire Gauge
SWG | Wire Diameter
mm | Mesh/Inch | Aperture
(mm) | Weight
(kg/m2) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2.0 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5.0 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1.0 | 6 | 3.2 | 3.0 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Features of Stainless Steel woven crimped Filter Mesh:
High tensile strength and stable structure;
Good resistance to corrosion and abrasion;
Beautiful and shiny surface;
Durable and has good loading capacity.
Applications of Stainless Steel woven crimped Filter Mesh:
Used for vibrating screen, test sieve;
Filter and sieve materials in mine, oil refining, construction, chemical industry, food process and other industries;
Made into decorative infill panel, protective mesh, barbecue grill, baking rack.
Attention:
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven crimped wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.

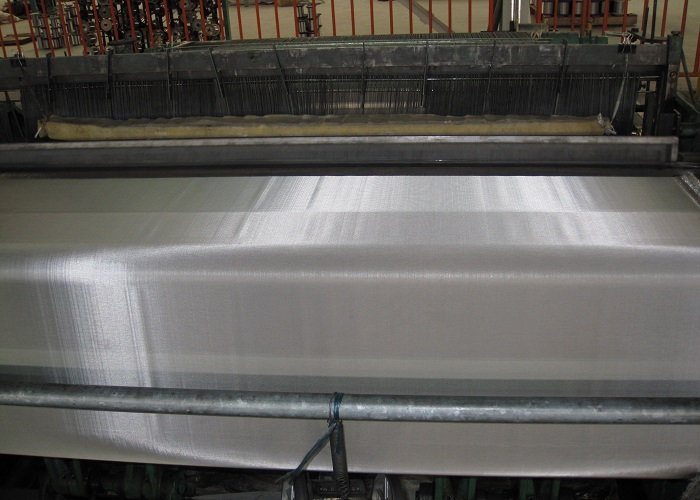

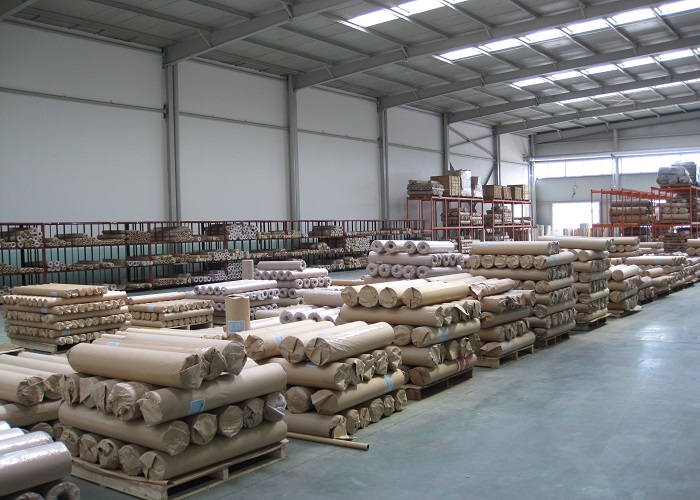

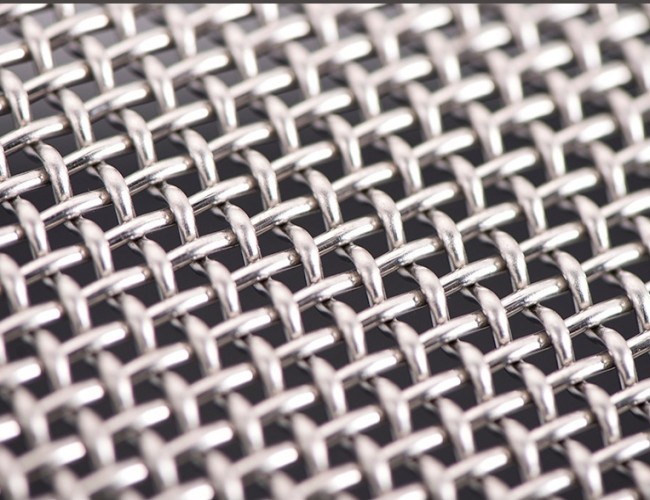

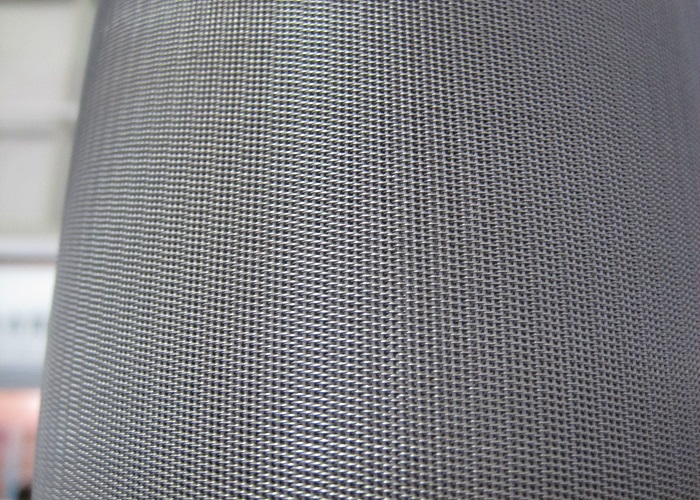

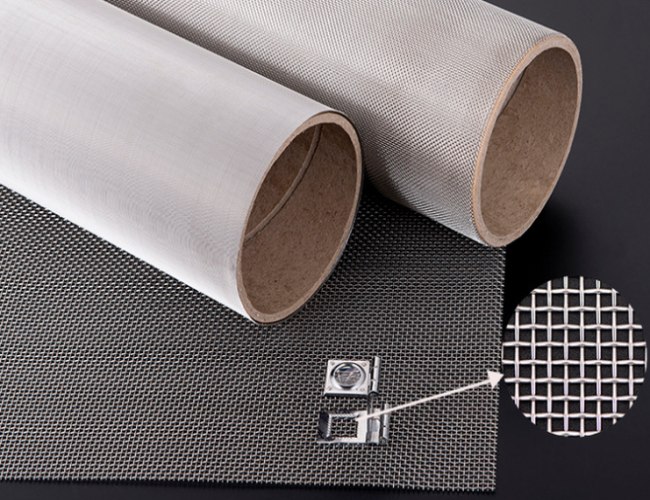

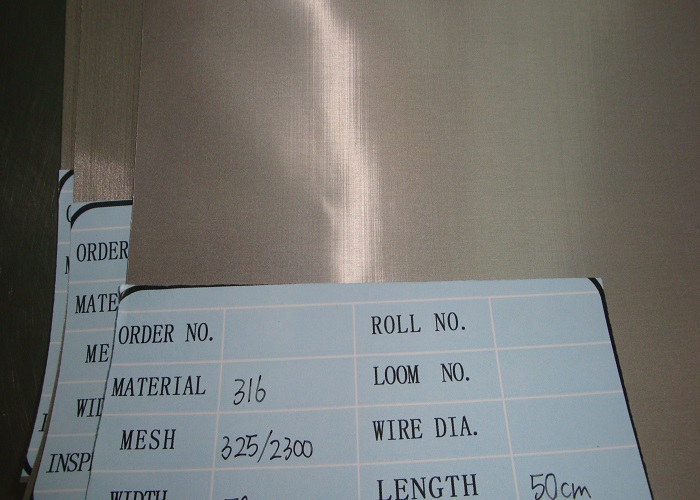

For your reference, some photos of our products and factory are listed here, please check.
Product Tags:
|
|

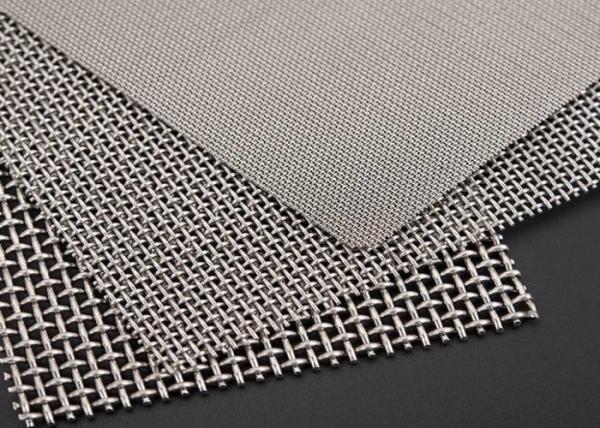

Woven Crimped AISI316 Stainless Steel Filtration Mesh Extruder Screen Mesh Images
|
